Horizon V Series

An IP23 meter box suitable for both single and multi-phase installations in Victoria.
Horizon V Series
Australian Made
Australian Made

Product Information

Applications

Suitable for domestic and light commercial metering installations.

Features

  • SIR Approval #SIR140615B
  • Designed for both single and multi-phase installations
  • AS/NZS 3012 compliant for construction sites as standard
  • Provide safety, quality and performance
  • Suitable for domestic and light commercial metering applications

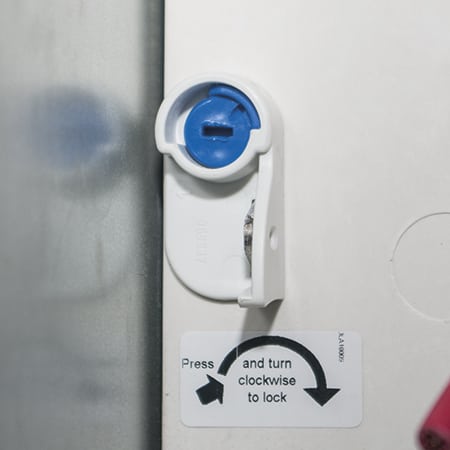

  • Self closing gravity catch

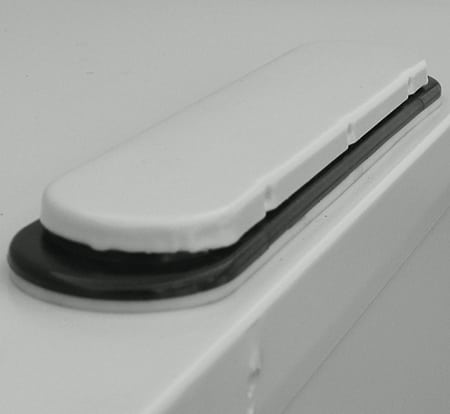

  • Top cable entry has ratchet aperture shut-off slide

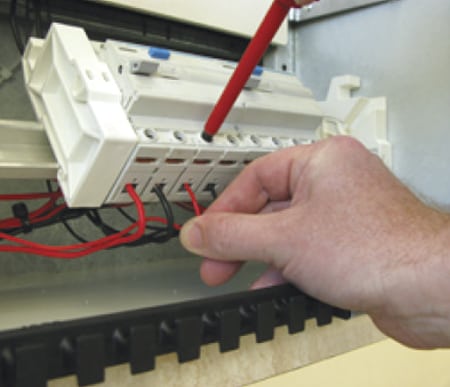

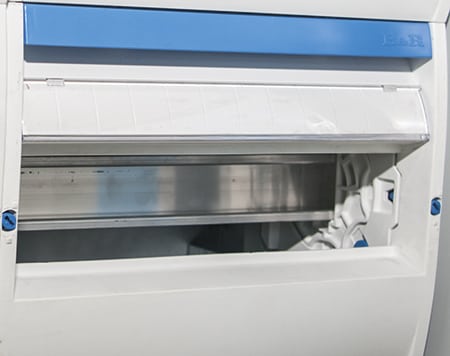

  • RotaDIN rotating / removable DIN section

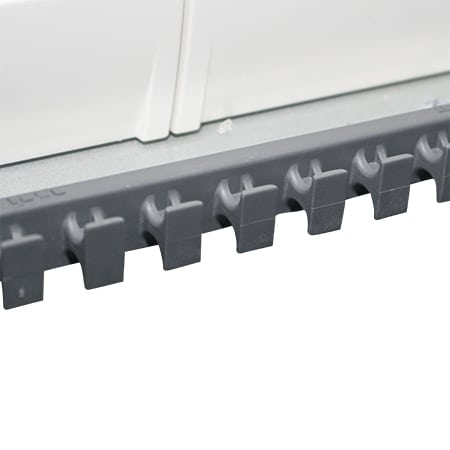

  • Cord retainer for easy retention of extension cords

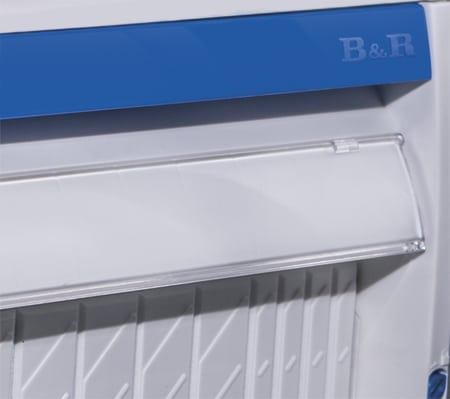

  • Circuit identification label area with protective cover
  • Weatherproof installation label for AS/NZS3000 compliance
  • Padlockable facility

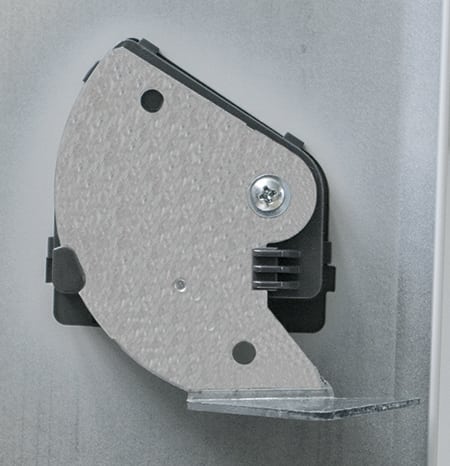

  • External frame mounting brackets
  • Region D wind rated to AS1170.2-2002: Structural design
    actions – Wind actions

Construction

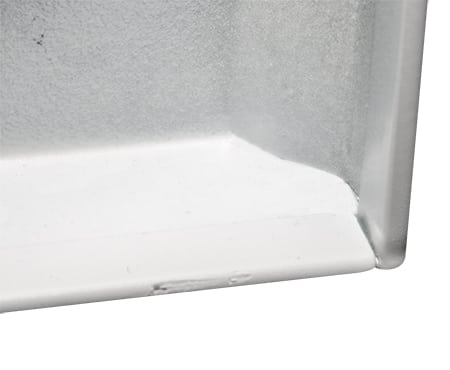

  • Manufactured from 1.0mm galvanised steel or 316 stainless steel
  • Powdercoated Light Grey RAL7035 or N4 surface finish

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Part No.DINInclusionsDimensionsPanelAvailable
Neutral LinkService fuseHeightWidthDepthHeightWidthDepth Behind
V5^20-pole••43048527738040075

Local Wholesaler
V1024-poleN18P + stud•69048527838040075

Local Wholesaler
V10/S24-poleN18P + stud•69048527838040075

Local Wholesaler
V11*43048527838040075

Local Wholesaler
V11/2*•43048527838040075

Local Wholesaler
V1248-pole2 x N18P + stud•86048527838040075

Local Wholesaler

*For remote load centre applications
^Single phase meters only

Accessories

Part NumberProductDescription
U/GBPBuilder's poleBuilders pole - Underground
U/GBPSPole supportPole support - temporary , head only
CLV001LockCoin lock
HZN/ROOFRoofRoof for use in exposed weather applications
HZN/PLINTH/S^Plinth - Stainless Steel PlinthDesigned to mate under a standard meter box.
Plinth dimension: 690Hx485Wx240D
Compliant to region C wind load according to AS/NZS1170.2
HZN/PLINTHPlinth - Zinc Coated Steel Plinth
HZN/FK8Flush kitFor flush mounting

^ Available on request
