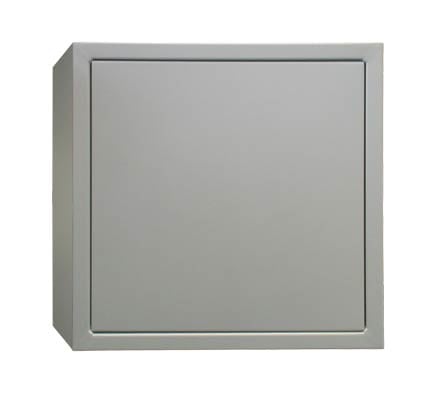

Monarch IP – Aluminium

An IP66, aluminium, multiple application enclosure & switchboard building system suitable for a wide variety of applications.
AS/NZS 61439
Monarch IP – Aluminium
Australian Made
Australian Made

Product Information

Applications

Designed to be the ultimate in flexibility the Monarch IP system is suitable for small motor control applications, lighting, CT metering and small switchboards (to form 2).

Features

  • IP66 protection rating – more info on IP ratings

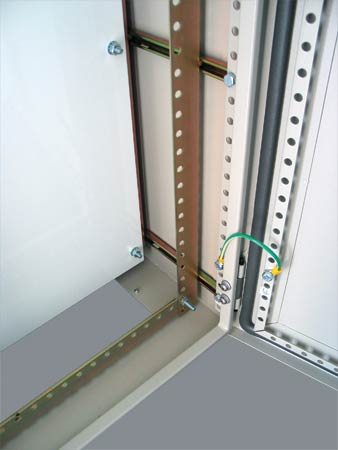

  • Vertical body and door rails
  • Earth strap kit comes as standard
  • Reversible doors (right hand hinging as standard)
  • Multiple mounting options providing the flexibility to install equipment in almost any position
  • Wide range of accessories for added versatility in equipment application
  • Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions

Construction

  • Body – Aluminium
  • Body thickness – 2.5mm
  • Polyurethane gasket (formed in place)
  • Powdercoated light grey RAL7035 paint finish or,
  • Ripple Orange – X15 (denoted by /RO in the part number code below)

Inclusions

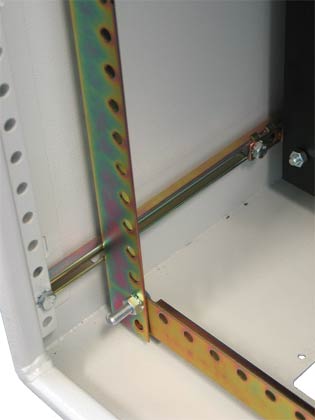

  • C rail mountings
  • Gland plate (fitted internally or externally)
  • 7mm square turnbuckle lock (below 1600mm high)
  • Lockable L handles (above 1600mm high)
  • 3-point locking (600mm high and above)
  • Removable back (400mm deep and above)

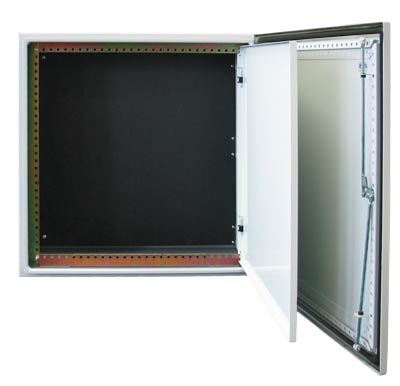

  • Door rails
  • Earth strap kit

Also available with Viewing Window Doors

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Smaller Enclosures Enclosure Selector Larger Enclosures

Part NumberHeight (mm)Width (mm)Depth (mm)WeightCAD BlocksTemp RiseEnquiry
Standard X15 Orange
IP13132/AIP13132/ARO4074072726Temperature Rise CalculatorEnquiry
IP13212/AIP13212/ARO4076072729Temperature Rise CalculatorEnquiry
IP13214/AIP13214/ARO40760740211Temperature Rise CalculatorEnquiry
IP21132/AIP21132/ARO6074072729Temperature Rise CalculatorEnquiry
IP21212/AIP21212/ARO60760727211Temperature Rise CalculatorEnquiry
IP21214/AIP21214/ARO60760740215Temperature Rise CalculatorEnquiry
IP21292/AIP21292/ARO60780727213Temperature Rise CalculatorEnquiry
IP21294/AIP21294/ARO60780740218Temperature Rise CalculatorEnquiry
IP21295/AIP21295/ARO60780750221Temperature Rise CalculatorEnquiry
IP25254/AIP25254/ARO70770740218Temperature Rise CalculatorEnquiry
IP29212/AIP29212/ARO80760727213Temperature Rise CalculatorEnquiry
IP29214/AIP29214/ARO80760740218Temperature Rise CalculatorEnquiry
IP29215/AIP29215/ARO80760750243Temperature Rise CalculatorEnquiry
IP29216/AIP29216/ARO80760760227Temperature Rise CalculatorEnquiry
IP29294/AIP29294/ARO80780740221Temperature Rise CalculatorEnquiry
IP37212/AIP37212/ARO100760727216Temperature Rise CalculatorEnquiry
IP37254/AIP37254/ARO100770740222Temperature Rise CalculatorEnquiry
IP37294/AIP37294/ARO100780740225Temperature Rise CalculatorEnquiry
IP45212/AIP45212/ARO120760727218Temperature Rise CalculatorEnquiry
IP45214/AIP45214/ARO120760740224Temperature Rise CalculatorEnquiry
IP45215/AIP45215/ARO120760750221Temperature Rise CalculatorEnquiry
IP45216/AIP45216/ARO120760760236Temperature Rise CalculatorEnquiry
IP45294/AIP45294/ARO120780740229Temperature Rise CalculatorEnquiry
IP45295/AIP45295/ARO120780750232Temperature Rise CalculatorEnquiry
IP61214/AIP61214/ARO160760740230Temperature Rise CalculatorEnquiry
IP61215/AIP61215/ARO160760750227Temperature Rise CalculatorEnquiry
IP61216/AIP61216/ARO160760760240Temperature Rise CalculatorEnquiry
IP61294/AIP61294/ARO160780740237Temperature Rise CalculatorEnquiry
IP61295/AIP61295/ARO160780750240Temperature Rise CalculatorEnquiry
IP61296/A—160780760243Temperature Rise CalculatorEnquiry
IP69214/AIP69214/ARO180760740234Temperature Rise CalculatorEnquiry
IP69215/AIP69215/ARO180760750234Temperature Rise CalculatorEnquiry
IP69294/AIP69294/ARO180780740240Temperature Rise CalculatorEnquiry
IP69295/AIP69295/ARO180780750244Temperature Rise CalculatorEnquiry
IP77135/AIP77135/ARO200740750241Temperature Rise CalculatorEnquiry
IP77136/AIP77136/ARO200740760244Temperature Rise CalculatorEnquiry
IP77214/AIP77214/ARO200760740237Temperature Rise CalculatorEnquiry
IP77215/AIP77215/ARO200760750237Temperature Rise CalculatorEnquiry
IP77216/AIP77216/ARO200760760245Temperature Rise CalculatorEnquiry
IP77218/AIP77218/ARO200760780260Temperature Rise CalculatorEnquiry
IP77294/AIP77294/ARO200780740244Temperature Rise CalculatorEnquiry
IP77295/AIP77295/ARO200780750248Temperature Rise CalculatorEnquiry
IP77296/AIP77296/ARO200780760252Temperature Rise CalculatorEnquiry
IP77298/AIP77298/ARO200780780263Temperature Rise CalculatorEnquiry

Smaller Enclosures Enclosure Selector Larger Enclosures

Accessories

Accessories

  • Lock options such as L handle
  • Metal mounting pans
  • Insulated mounting pans
  • Double hinged insulating panels
  • Hinged escutcheons
  • Fixed escutcheons
  • Gland plates
  • Shelves
  • Plinths
  • Rainhood
  • Vent kit
  • Vent hoods (IPVK/S)
  • Lifting brackets
  • Wall mounting brackets
  • Rails (‘C’, DIN, UV, escutcheon and busbar)
  • Climate control equipment

Climate Control

For more information see our Climate Control page (opens in new tab)

Lock Options

Standard

Catalogue No.TypeMaterialCommentsLock Insert TypeKeyImage
IP020/PSTurnbucklePowdercoated with SS InsertStandard7mm Square Stainless SteelSKZTurnbuckle Lock - Powdercoated Steel with 7mm Square Stainless Steel Insert
NI028S/STurnbuckleStainless SteelStandard on Bowen BW, option on all others8mm Square Slotted Stainless SteelSK8Turnbuckle Lock - Stainless Steel, 8mm Square Slotted
IP050L Handle - LockableChromed SteelStandard 1600mm or higher, Option less than 1600mmKey Code 92268SK3L Handle Lockable - Chrome Steel Key 92268

Options

Catalogue No.TypeMaterialCommentsLock Insert TypeKeyImage
IP020/STurnbuckleStainless SteelOption7mm Square Stainless SteelSKZTurnbuckle Lock - Stainless Steel with 7mm Square
NI028S/STurnbuckleStainless SteelStandard on Bowen BW, option on all others8mm Square Slotted Stainless SteelSK8Turnbuckle Lock - Stainless Steel, 8mm Square Slotted
IP030Wing Knob - LockableOptionKey Code 92268SK3Lockable Wing Knob - 92268 Key
IP030/CL001Wing Knob - LockableOptionKey Code CL001SK3Lockable Wing Knob - 92268 Key
IP030/L003Wing Knob - LockableOptionKey Code L003SK3Lockable Wing Knob - 92268 Key
IP111Wing Knob - Non-lockableOptionNon-lockable Wing Knob
IP040T Handle - LockableChromed SteelOptionKey Code 92268SK3T Handle Lockable - Chromed Steel 92268 Lock
IP050L Handle - LockableChromed SteelStandard 1600mm or higher, Option less than 1600mmKey Code 92268SK3L Handle Lockable - Chrome Steel Key 92268
IP052L Handle - PadlockableChromed SteelOptionPadlockL Handle - Padlockable, Chrome Steel
IP052/SL Handle - PadlockableStainless SteelOptionPadlockL Handle Padlockable - Stainless Steel
IP060Swing Handle - PadlockableChromed SteelOptionPadlockSwing Handle - Padlockable Chrome Steel
IP060/SSwing Handle - PadlockableStainless SteelOptionPadlockSwing Handle Padlockable - Stainless Steel
Inserts for Turnbuckle Locks - Optional
Catalogue No.ProductMaterialLock Insert TypeKey
LKINS3PInsertSteel3mm Double Bit PinSKZ
LKINS3P/SInsertStainless Steel3mm Double Bit PinSKZ
LKINS8SInsertSteel8mm SquareSK8
LKINS8S/SInsertStainless Steel8mm SquareSK8
LKINS8SS/SInsertStainless Steel8mm Square SlottedSK8 / Screwdriver
LKINS8TInsertSteel8mm TriangleSKZ
LKINS8T/SInsertStainless Steel8mm TriangleSKZ

AS/NZS 61439 Compliance

AS/NZS 61439 is the new series of standards for low-voltage (LV) switchgear and control gear assemblies. For more information on whether you need to comply see our AS/NZS 61439 page.

Click the bar below the requirements and responsibilities for complaince with AS/NZS 61439 for this enclosure.

The following definitions apply to this table: -

  • Original Manufacturer* - Switchboard designer and manufacturer of the switchboard enclosure.
  • Assembly Manufacturer* - A switchboard builder.
  • Original Equipment Manufacturer - The company who manufactured the switchgear used in final assembly.

*The original manufacturer and assembly manufacturer can be the same company or different companies.

If you are a SWITCHBOARD BUILDER this means you are the ASSEMBLY MANUFACTURER and you may be the ORIGINAL MANUFACTURER too. Any switchgear you order will need to be covered by the requirements of the Original Equipment Manufacturer.

B&R has some (but not all) of the responsibilities of the ORIGINAL MANUFACTURER.

If you are an END USER of the equipment you can see who has responsibility from these definitions.

NoCharacteristic to be CheckedClauseResponsibilityComments
Resistance to corrosion  10.2.2PassedThe resistance to corrosion was tested using a representative samples. Report; 103687.
Thermal stability (relates to non-metal enclosures)  10.2.3.1N/AThis clause refers mainly to plastic enclosures.
Resistance to abnormal heat and fire (due to internal electric effect)  10.2.3.2PassedAll insulating materials supplied have been tested to 960ºC glow-wire Standard. Plus ES report;
103863
Resistance to ultra-violet (UV) radiation  10.2.4PassedUV ratings refer mainly to plastic enclosures however metal Powder-coat painted enclosures incorporates UV stabilization. AkzoNobel report; 20LSR178
Lifting  10.2.5PassedLifting is verified by test, if required. Generally this relates to larger switchboards to which lifting means (lugs) have been provided. Plus ES report; 103687
Mechanical Impact  10.2.6PassedIK10; Metal enclosure systems have been tested to exceed IK10 (20 Joules).
Marking  10.2.7AssemblerMarkings must be verified by test. Tests are performed by rubbing with water and petroleum spirits; generally done by the Switchboard Builder (Assembler).
2Degree of protection of enclosures (IP)10.3Passed / Plus ES2IP66; Ingress Protection (IP) rating needs to be verified by test or by assessment. Plus ES report; 103687
3Clearances10.4AssemblerClearance and creepage can only be verified by test. Switchboard Builders (Assembler) must maintain compliance by ensuring correct clearance and creepage distances are maintained at >8mm (Uimp=8kV) and >16mm (Ui=1kV) 4 Creepage distances 10.4 respectively
4Creepage distances10.4Assembler
5Protection against electric shock and integrity of protective circuits10.5
Effective continuity between the exposed conductive parts of the ASSEMBLY and the protective circuit   10.5.2Passed / Plus ES2Equipotential protective earth bonding points are required to be verified by test to less than 0.1ohm. Similar enclosure designs have been tested by Plus ES report; 103687
Short-circuit withstand strength of the protective circuit   10.5.3Passed / Plus ES2Protective circuit verification can be by test or comparison with a reference design. Plus ES report; 103687.
6Incorporation of switching devices and components10.6AssemblerPoints 6, 7 and 8 are largely the responsibility of the Switchboard builder (Assembler). It is a requirement that the Assembler follow guidance from the original manufacturer. The advice of original manufacturers such as B&R and switchgear manufacturers, needs to be adhered to. Switchboard Builders need to be aware of the Standard’s requirements for these verification points and incorporate these into complete design verification documentation.
7Internal electrical circuits and connections10.7Assembler
8Terminals for external conductors10.8Assembler
9Dielectric Properties10.9
Power-frequency withstand voltage  10.9.2Passed / Plus ES2Dielectric properties have been tested as per Plus ES report; 103687.
Impulse withstand voltage  10.9.3
10Temperature-rise limits10.1Designer or AssemblerTemperature-rise can be determined by test or by comparison or by calculation. Temperature rise methods provided in AS/NZS 60890 can be used for switchboards not exceeding 1600A rating. Designers need to use AS/NZS 60890 for Monarch IP Series of enclosures with a rating not exceeding 1600A. Higher ratings need to be referred to B&R. Plus ES report: 103814.
11Short circuit withstand strength10.11Passed / Plus ES2Monarch IP low-voltage switchboards are designed and tested in full compliance with AS/NZS 61439 and have been externally verified to withstand 50kA rms for 3s.
12Electromagnetic compatibility (EMC)10.12AssemblerEquipment installed in switchboards shall comply with the immunity requirements of the relevant product or generic EMC standard. The Switchboard builder (assembler) shall obtain from the device and or component manufacturer the specific performance criteria of the equipment based on the acceptance criteria given in the relevant standard.
13Mechanical operation10.13AssemblerThis verification testing need NOT be done on devices already been type tested according to their relevant product standard. Only if their mechanical operation has been modified does the assembly need to be retested by cycling it 200 times.
