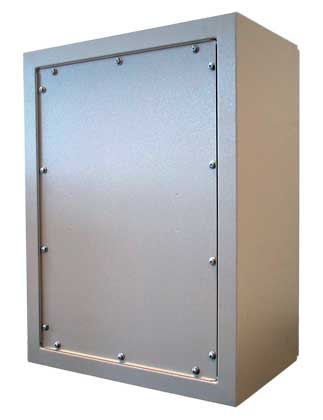

Monarch IP – Zinc Coated Steel

An IP66, premium industrial enclosure and switchboard building system designed to be the ultimate in flexibility.
AS/NZS 61439
Monarch IP – Zinc Coated Steel
Australian Made
Australian Made

Product Information

Applications

Designed to be the ultimate in flexibility the Monarch IP system is suitable for small motor control applications, lighting, CT metering and small switchboards (to form 2).

Features

  • IP66 protection rating – more info on IP ratings

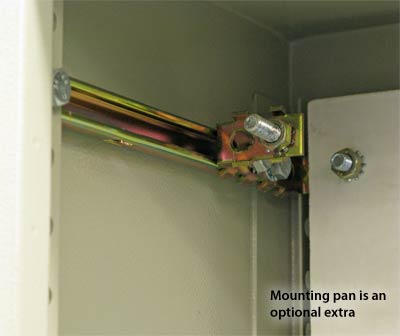

  • C rail mountings for equipment
  • Gland plate on all but 175 and 270mm deep enclosures
  • Vertical body and door rails

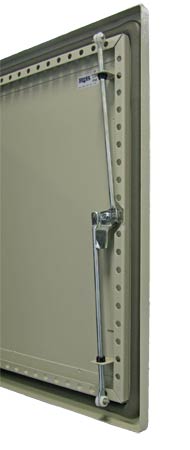

  • 3 point locking on models of 600mm high and above

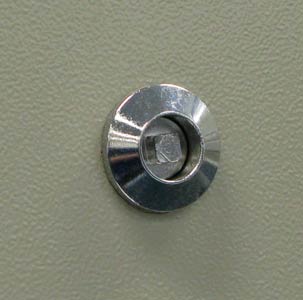

  • Lockable L handle on enclosures 1600mm high and above (7mm square key turnbuckle lock on others)

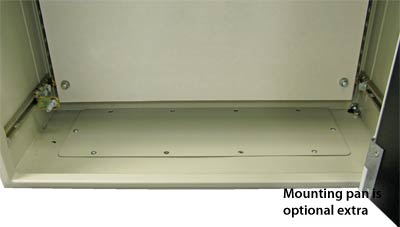

  • Mounting pan is optional extra
  • Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions

Construction

  • 1.6mm thick zinc coated steel
  • 1.6mm steel gland plate (brass also available as an option)

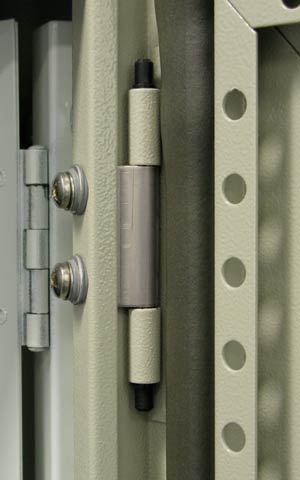

  • Stainless steel hinges and hinge pins for easy door opening
  • Concealed removable hinging
  • Polyurethane gasket (formed in place)
  • Pebble Grey (RAL7032) powdercoated paint finish or,
  • Ripple Orange – X15 (denoted by /RO in the part number code below)

Also available with Viewing Window Doors

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Smaller Enclosures Enclosure Selector Larger Enclosures

Part NumberHeight (mm)Width (mm)Depth (mm)WeightCAD BlocksEnquiry
Standard X15 Orange
IP13132IP13132/RO40040027013Enquiry
IP13212IP13212/RO40060027017Enquiry
IP13214IP13214/RO40060040017Enquiry
IP21132IP21132/RO60040027017Enquiry
IP21212IP21212/RO60060027022Enquiry
IP21214IP21214/RO60060040021Enquiry
IP21292IP21292/RO60080027028Enquiry
IP21294IP21294/RO60080040043Enquiry
IP21295IP21295/RO60080050037Enquiry
IP25254IP25254/RO70070040069Enquiry
IP29212IP29212/RO80060027028Enquiry
IP29214IP29214/RO80060040027Enquiry
IP29215IP29215/RO80060050037Enquiry
IP29216IP29216/RO80060060042Enquiry
IP29294IP29294/RO80080040033Enquiry
IP37212IP37212/RO100060027033Enquiry
IP37254IP37254/RO100070040033Enquiry
IP37294IP37294/RO100080040040Enquiry
IP45212IP45212/RO120060027038Enquiry
IP45214IP45214/RO120060040028Enquiry
IP45215IP45215/RO120060050050Enquiry
IP45216IP45216/RO120060060056Enquiry
IP45294IP45294/RO120080040051Enquiry
IP45295IP45295/RO120080050060Enquiry
IP61214IP61214/RO160060040045Enquiry
IP61215IP61215/RO160060050064Enquiry
IP61216IP61216/RO160060060070Enquiry
IP61294IP61294/RO160080040054Enquiry
IP61295IP61295/RO160080050076Enquiry
IP69214IP69214/RO180060040057Enquiry
IP69215IP69215/RO180060050070Enquiry
IP69294IP69294/RO180080040069Enquiry
IP69295IP69295/RO180080050083Enquiry
IP77135IP77135/RO200040050083Enquiry
IP77136 IP77136 /RO200040060079.9Enquiry
IP77214IP77214/RO200060040063Enquiry
IP77215IP77215/RO200060050077Enquiry
IP77216IP77216/RO200060060084Enquiry
IP77218IP77218/RO2000600800119.6Enquiry
IP77294IP77294/RO200080040076Enquiry
IP77295IP77295/RO200080050091Enquiry
IP77296IP77296/RO200080060099Enquiry
IP77298IP77298/RO2000800800109Enquiry

Smaller Enclosures Enclosure Selector Larger Enclosures

Accessories

Accessories

  • Lock options such as L handle
  • Metal mounting pans
  • Insulated mounting pans
  • Double hinged insulating panels
  • Hinged escutcheons
  • Fixed escutcheons
  • Gland plates
  • Shelves
  • Plinths
  • Rainhood
  • Vent kit (IPVK)
  • Vent hoods
  • Lifting brackets
  • Wall mounting brackets
  • Rails (‘C’, DIN, UV, escutcheon and busbar)
  • Climate control equipment

Climate Control

For more information see our Climate Control page (opens in new tab)

Lock Options

Standard

Catalogue No.TypeMaterialCommentsLock Insert TypeKeyImage
IP020TurnbuckleChromed SteelStandard7mm Square Chromed SteelSKZTurnbuckle Lock - 7mm square, chrome steel
IP050L Handle - LockableChromed SteelStandard 1600mm or higher, Option less than 1600mmKey Code 92268SK3L Handle Lockable - Chrome Steel Key 92268

Options

Catalogue No.TypeMaterialCommentsLock Insert TypeKeyImage
IP030Wing Knob - LockableOptionKey Code 92268SK3Lockable Wing Knob - 92268 Key
IP030/CL001Wing Knob - LockableOptionKey Code CL001SK3Lockable Wing Knob - 92268 Key
IP030/L003Wing Knob - LockableOptionKey Code L003SK3Lockable Wing Knob - 92268 Key
IP111Wing Knob - Non-lockableOptionNon-lockable Wing Knob
IP040T Handle - LockableChromed SteelOptionKey Code 92268SK3T Handle Lockable - Chromed Steel 92268 Lock
IP050L Handle - LockableChromed SteelStandard 1600mm or higher, Option less than 1600mmKey Code 92268SK3L Handle Lockable - Chrome Steel Key 92268
IP052L Handle - PadlockableChromed SteelOptionPadlockL Handle - Padlockable, Chrome Steel
IP060Swing Handle - PadlockableChromed SteelOptionPadlockSwing Handle - Padlockable Chrome Steel
Inserts for Turnbuckle Locks - Optional
Catalogue No.ProductMaterialLock Insert TypeKey
LKINS3PInsertSteel3mm Double Bit PinSKZ
LKINS8SInsertSteel8mm SquareSK8
LKINS8TInsertSteel8mm TriangleSKZ

AS/NZS 61439 Compliance

AS/NZS 61439 is the new series of standards for low-voltage (LV) switchgear and control gear assemblies. For more information on whether you need to comply see our AS/NZS 61439 page.

Click the bar below the requirements and responsibilities for complaince with AS/NZS 61439 for this enclosure.

The following definitions apply to this table: -

  • Original Manufacturer* - Switchboard designer and manufacturer of the switchboard enclosure.
  • Assembly Manufacturer* - A switchboard builder.
  • Original Equipment Manufacturer - The company who manufactured the switchgear used in final assembly.

*The original manufacturer and assembly manufacturer can be the same company or different companies.

If you are a SWITCHBOARD BUILDER this means you are the ASSEMBLY MANUFACTURER and you may be the ORIGINAL MANUFACTURER too. Any switchgear you order will need to be covered by the requirements of the Original Equipment Manufacturer.

B&R has some (but not all) of the responsibilities of the ORIGINAL MANUFACTURER.

If you are an END USER of the equipment you can see who has responsibility from these definitions.

NoCharacteristic to be CheckedClauseResponsibilityComments
Resistance to corrosion  10.2.2Original ManufacturerTesting has shown Zinc-coated steel resists corrosion to 1000 hours of neutral salt spray, exceeding the 61Compliance. Further verification has been performed by an external NATA laboratory to severity level B (outdoor environments).
Thermal stability (relates to non-metal enclosures)  10.2.3.1Original ManufacturerMetal enclosures have no thermal stability requirements.
Resistance to abnormal heat and fire (due to internal electric effect)  10.2.3.2Original ManufacturerInsulation materials have been verified by external NATA laboratory.
Resistance to ultra-violet (UV) radiation  10.2.4Original ManufacturerMetal enclosures do not require UV verification except when painted. B&R use industrial grade powder-coat paint which incorporates UV stabilisation and is certified by our supplier.
Lifting  10.2.5Original ManufacturerLifting requirements have been verified by external NATA laboratory.
Mechanical Impact  10.2.6Original ManufacturerInternal testing verifies that enclosures exceeds IK10 required.
Marking  10.2.7Assembly ManufacturerLabels supplied by B&R are manufactured from plastic laminated materials and meet all 61Compliance requirements. Switchboard builders need also to take note of 61Compliance requirements for a labelling. Markings have been verified by external NATA laboratory.
2Degree of protection of enclosures (IP)10.3Original ManufacturerAll IP requirements have been verified by external NATA laboratory.
3Clearances10.4Assembly ManufacturerClearances have been verified by external NATA laboratory.
However, the SBB must also ensure compliance by ensuring correct clearances are maintained as per the Standard and original equipment manufacturers installation instructions.
4Creepage distances10.4Assembly Manufacturer
5Protection against electric shock and integrity of protective circuits10.5
Effective continuity between the exposed conductive parts of the ASSEMBLY and the protective circuit   10.5.2Assembly ManufacturerProtective circuits have been verified by external NATA laboratory.
However, the SBB must also ensure effective continuity between exposed conductive parts of an assembly and protective circuits are maintained (less than 0.1ohm).
Short-circuit withstand strength of the protective circuit   10.5.3Original ManufacturerProtective circuits short-circuit withstand strength has been verified by external NATA laboratory.
However, the SBB must also ensure compliance by ensuring correct implementation of protective circuits as per the Standard and original equipment manufacturers installation instructions.
6Incorporation of switching devices and components10.6Assembly ManufacturerThis is the responsibility of the SBB; however, it is a requirement that the SBB follows guidance from the original equipment manufacturer (OEM). The advice and guidance of the OEM such as B&R and switchgear manufacturers needs to be adhered to while maintaining compliance to Standards and State based Regulations and Service and Installation Rules (SIR).
7Internal electrical circuits and connections10.7Assembly Manufacturer
8Terminals for external conductors10.8Assembly Manufacturer
9Dielectric Properties10.9
Power-frequency withstand voltage  10.9.2Original ManufacturerWithstand voltages have been verified by external NATA laboratory.
However, the SBB must also ensure effective assembly of the switchboard, adhering to all OEM installation Instructions.
Impulse withstand voltage  10.9.3Original Manufacturer
10Temperature-rise limits10.1Assembly ManufacturerThe switchboard designer (either the Original Manufacturer or the SBB), must calculate temperature rise as each design may be different. For switchboards below 1600A rating, AS/NZS 60890 can be used from first principles.
11Short circuit withstand strength10.11Original ManufacturerTested and certified by an external NATA laboratory and passed to a rating of 50kA/1s.
12Electromagnetic compatibility (EMC)10.12Original Equipment ManufacturerEquipment installed in switchboards must comply with the immunity requirements of the relevant product or generic EMC standard. The SBB must obtain from the OEM the specific performance criteria of the equipment based on the acceptance criteria given in the relevant standard.
13Mechanical operation10.13Original Equipment ManufacturerMechanical operation relates to situations where switchgear operation has been changed beyond their original approval. However, SBB must ensure compliance if modifications have been made.

Case Studies

B&R Powers RayGen’s Carwarp Solar Innovation

Recently B&R completed a flagship project for RayGen, a leading innovator in solar energy technology, assisting with the development of the Carwarp Power Plant, a cutting-edge renewable energy facility located in regional Victoria, near Mildura.

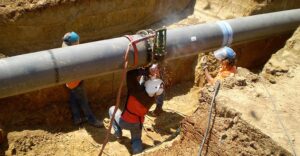

Brooklyn to Lara Gas Pipeline
