Order Guide
| Part Number | Height | Width | Depth | RU | Description |
|---|---|---|---|---|---|
| FEQ180906/A | 1850 | 900 | 620 | 31 | Un-metered |
| FEQ180906/A/M | 1850 | 900 | 620 | 31 | Metered |

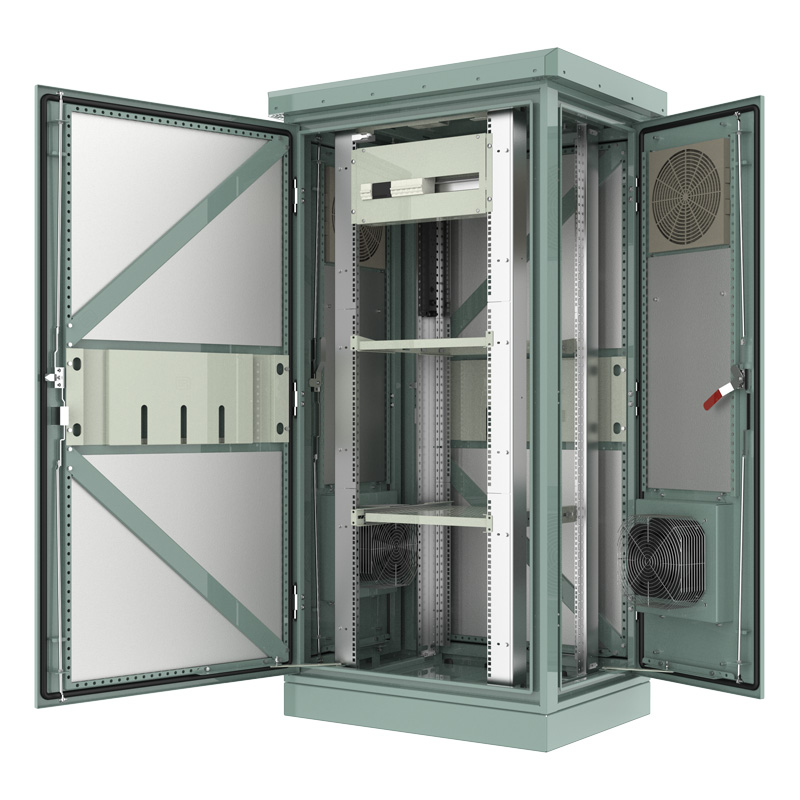

Un-metered option is shown below.
QLD ITS Enclosure
Product Information
Applications
The substantial growth in infrastructure in Australia, and the requirement to protect electronic equipment in outdoor or isolated locations has led to the need for a flexible enclosure. Protection against vandalism and the functionality of the system are two of the major considerations when selecting an enclosure for isolated environments. B&R’s range of enclosures have been designed specifically to minimise vandalism.
The flexibility of this range allows it to be used in a variety of applications including:
- Housing of intelligent transport systems (ITS) equipment
- GPS receivers and transmitters
- Road monitoring and traffic management equipment
- Radio communications equipment
Features
- Designed specifically to protect equipment from the harsh Australian conditions
- Complies with the QLD MRTS226 Telecommunication Field Cabinet
- Configurable for both 19″ and 21″ equipment.
- Suitable for all ITS applications.
- Fully wired including load centre, lighting, power rails and high flow fans
- Supplied with two 6-way 10 Amp power rails
- Lockable supply authority metering section (FEQ180906/A/M only)
- IP56 rating for weather protection.
- Tested for up to 500W heat load with the included fan & filter ventilation system.
- Termination enclosure accessible via side door
- 3-point locking to front and rear door.
- 100mm stainless steel mounting base.
- Sloped sun canopy to ensure rain run off
- Four (4) concealed lifting lugs
- Stainless steel lockable swing handle.
Construction
- Manufactured from 2mm 5052 H32 marine grade aluminium
- Powdercoated T33 Smoke Blue with gloss finish
~
