Monarch IP – Viewing Window (AL)

An IP66, aluminium, multiple application enclosure & switchboard building system suitable for a wide variety of applications.
AS/NZS 61439

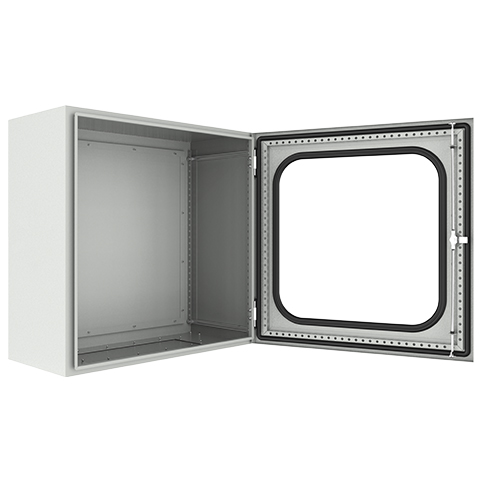

Monarch IP – Viewing Window (AL)
Australian Made
Australian Made

Product Information

Applications

Designed to be the ultimate in flexibility the Monarch IP system is suitable for small motor control applications, lighting, CT metering and small switchboards (to form 2).

Features

  • IP66 protection rating – more info on IP ratings
  • Vertical body and door rails
  • Earth strap kit comes as standard
  • Reversible doors (right hand hinging as standard)
  • Multiple mounting options providing the flexibility to install equipment in almost any position
  • Wide range of accessories for added versatility in equipment application
  • Glass Viewing Window
  • Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions

Construction

  • Body – Aluminium
  • Body thickness – 2.5mm
  • Polyurethane gasket (formed in place)
  • Powdercoated light grey RAL7035 paint finish or,
  • Ripple Orange – X15 (denoted by /RO in the part number code below)
  • 5.4mm thick Glass viewing window

Inclusions

  • C rail mountings
  • Gland plate (fitted internally or externally)
  • 7mm square turnbuckle lock (below 1600mm high)
  • Lockable L handles (above 1600mm high)
  • 3-point locking (600mm high and above)
  • Removable back (400mm deep and above)
  • Door rails
  • Earth strap kit

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Part NumberHeight (mm)Width (mm)Depth (mm)Viewing Window Enquiry
Standard X15 OrangeHeight (mm)Width(mm)
IP13132/A/WGIP13132/ARO/WG407407272175175Enquiry
IP13212/A/WGIP13212/ARO/WG407607272175363Enquiry
IP13214/A/WGIP13214/ARO/WG407607402175363Enquiry
IP21132/A/WGIP21132/ARO/WG607407272368175Enquiry
IP21212/A/WGIP21212/ARO/WG607607272368363Enquiry
IP21214/A/WGIP21214/ARO/WG607607402368363Enquiry
IP21292/A/WGIP21292/ARO/WG607807272368563Enquiry
IP21294/A/WGIP21294/ARO/WG607807402368536Enquiry
IP21295/A/WGIP21295/ARO/WG607807502368563Enquiry
IP25254/A/WGIP25254/ARO/WG707707402468463Enquiry
IP29212/A/WGIP29212/ARO/WG807607272568363Enquiry
IP29214/A/WGIP29214/ARO/WG807607402568363Enquiry
IP29215/A/WGIP29215/ARO/WG807607502568363Enquiry
IP29216/A/WGIP29216/ARO/WG807607602568363Enquiry
IP29294/A/WGIP29294/ARO/WG807807402568563Enquiry
IP37212/A/WGIP37212/ARO/WG1007607272768363Enquiry
IP37254/A/WGIP37254/ARO/WG1007707402768463Enquiry
IP37294/A/WGIP37294/ARO/WG1007807402768563Enquiry
IP45212/A/WGIP45212/ARO/WG1207607272968363Enquiry
IP45214/A/WGIP45214/ARO/WG1207607402968363Enquiry
IP45215/A/WGIP45215/ARO/WG1207607502968363Enquiry
IP45216/A/WGIP45216/ARO/WG1207607602968363Enquiry
IP45294/A/WGIP45294/ARO/WG1207807402968563Enquiry
IP45295/A/WGIP45295/ARO/WG1207807502968563Enquiry
IP61214/A/WGIP61214/ARO/WG16076074021368363Enquiry
IP61215/A/WGIP61215/ARO/WG16076075021368363Enquiry
IP61216/A/WGIP61216/ARO/WG16076076021368363Enquiry
IP61294/A/WGIP61294/ARO/WG16078074021368563Enquiry
IP61295/A/WGIP61295/ARO/WG16078075021368563Enquiry
IP61296/A/WG—16078076021368563Enquiry
IP69214/A/WGIP69214/ARO/WG18076074021568363Enquiry
IP69215/A/WGIP69215/ARO/WG18076075021568363Enquiry
IP69294/A/WGIP69294/ARO/WG18078074021568563Enquiry
IP69295/A/WGIP69295/ARO/WG18078075021568563Enquiry
IP77135/A/WGIP77135/ARO/WG20074075021768175Enquiry
IP77136/A/WGIP77136/ARO/WG20074076021768175Enquiry
IP77214/A/WGIP77214/ARO/WG20076074021768363Enquiry
IP77215/A/WGIP77215/ARO/WG20076075021768363Enquiry
IP77216/A/WGIP77216/ARO/WG20076076021768363Enquiry
IP77218/A/WGIP77218/ARO/WG20076078021768363Enquiry
IP77294/A/WGIP77294/ARO/WG20078074021768563Enquiry
IP77295/A/WGIP77295/ARO/WG20078075021768563Enquiry
IP77296/A/WGIP77296/ARO/WG20078076021768563Enquiry
IP77298/A/WGIP77298/ARO/WG20078078021768563Enquiry

Accessories

Accessories

  • Lock options such as L handle
  • Metal mounting pans
  • Insulated mounting pans
  • Double hinged insulating panels
  • Hinged escutcheons
  • Fixed escutcheons
  • Gland plates
  • Shelves
  • Plinths
  • Rainhood
  • Vent kit
  • Vent hoods (IPVK/S)
  • Lifting brackets
  • Wall mounting brackets
  • Rails (‘C’, DIN, UV, escutcheon and busbar)

Climate Control

For more information see our Climate Control page (opens in new tab)

Lock Options

Standard

Catalogue No.TypeMaterialCommentsLock Insert TypeKeyImage
IP020/PSTurnbucklePowdercoated with SS InsertStandard7mm Square Stainless SteelSKZTurnbuckle Lock - Powdercoated Steel with 7mm Square Stainless Steel Insert
NI028S/STurnbuckleStainless SteelStandard on Bowen BW, option on all others8mm Square Slotted Stainless SteelSK8Turnbuckle Lock - Stainless Steel, 8mm Square Slotted
IP050L Handle - LockableChromed SteelStandard 1600mm or higher, Option less than 1600mmKey Code 92268SK3L Handle Lockable - Chrome Steel Key 92268

Options

Catalogue No.TypeMaterialCommentsLock Insert TypeKeyImage
IP020/STurnbuckleStainless SteelOption7mm Square Stainless SteelSKZTurnbuckle Lock - Stainless Steel with 7mm Square
NI028S/STurnbuckleStainless SteelStandard on Bowen BW, option on all others8mm Square Slotted Stainless SteelSK8Turnbuckle Lock - Stainless Steel, 8mm Square Slotted
IP030Wing Knob - LockableOptionKey Code 92268SK3Lockable Wing Knob - 92268 Key
IP030/CL001Wing Knob - LockableOptionKey Code CL001SK3Lockable Wing Knob - 92268 Key
IP030/L003Wing Knob - LockableOptionKey Code L003SK3Lockable Wing Knob - 92268 Key
IP111Wing Knob - Non-lockableOptionNon-lockable Wing Knob
IP040T Handle - LockableChromed SteelOptionKey Code 92268SK3T Handle Lockable - Chromed Steel 92268 Lock
IP050L Handle - LockableChromed SteelStandard 1600mm or higher, Option less than 1600mmKey Code 92268SK3L Handle Lockable - Chrome Steel Key 92268
IP052L Handle - PadlockableChromed SteelOptionPadlockL Handle - Padlockable, Chrome Steel
IP052/SL Handle - PadlockableStainless SteelOptionPadlockL Handle Padlockable - Stainless Steel
IP060Swing Handle - PadlockableChromed SteelOptionPadlockSwing Handle - Padlockable Chrome Steel
IP060/SSwing Handle - PadlockableStainless SteelOptionPadlockSwing Handle Padlockable - Stainless Steel
Inserts for Turnbuckle Locks - Optional
Catalogue No.ProductMaterialLock Insert TypeKey
LKINS3PInsertSteel3mm Double Bit PinSKZ
LKINS3P/SInsertStainless Steel3mm Double Bit PinSKZ
LKINS8SInsertSteel8mm SquareSK8
LKINS8S/SInsertStainless Steel8mm SquareSK8
LKINS8SS/SInsertStainless Steel8mm Square SlottedSK8 / Screwdriver
LKINS8TInsertSteel8mm TriangleSKZ
LKINS8T/SInsertStainless Steel8mm TriangleSKZ

AS/NZS 61439 Compliance

AS/NZS 61439 is the new series of standards for low-voltage (LV) switchgear and control gear assemblies. For more information on whether you need to comply see our AS/NZS 61439 page.

Click the bar below the requirements and responsibilities for complaince with AS/NZS 61439 for this enclosure.

The following definitions apply to this table: -

  • Original Manufacturer* - Switchboard designer and manufacturer of the switchboard enclosure.
  • Assembly Manufacturer* - A switchboard builder.
  • Original Equipment Manufacturer - The company who manufactured the switchgear used in final assembly.

*The original manufacturer and assembly manufacturer can be the same company or different companies.

If you are a SWITCHBOARD BUILDER this means you are the ASSEMBLY MANUFACTURER and you may be the ORIGINAL MANUFACTURER too. Any switchgear you order will need to be covered by the requirements of the Original Equipment Manufacturer.

B&R has some (but not all) of the responsibilities of the ORIGINAL MANUFACTURER.

If you are an END USER of the equipment you can see who has responsibility from these definitions.

NoCharacteristic to be CheckedClauseResponsibilityComments
