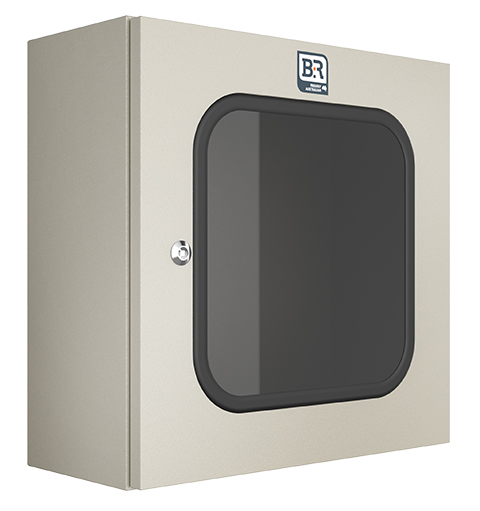

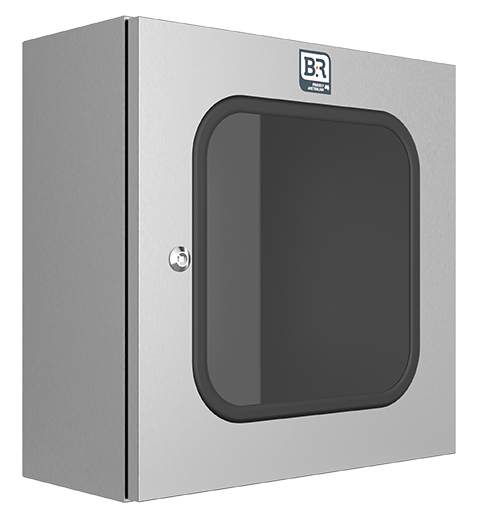

Monarch IP – Viewing Window (ZS)

An IP66, premium industrial enclosure and switchboard building system designed to be the ultimate in flexibility.
AS/NZS 61439
Monarch IP – Viewing Window (ZS)
Australian Made
Australian Made

Product Information

Applications

Designed to be the ultimate in flexibility the Monarch IP system is suitable for small motor control applications, lighting, CT metering and small switchboards (to form 2).

Features

  • IP66 protection rating – more info on IP ratings
  • C rail mountings for equipment
  • Gland plate on all but 175 and 270mm deep enclosures
  • Vertical body and door rails
  • 3 point locking on models of 600mm high and above
  • Lockable L handle on enclosures 1600mm high and above (7mm square key turnbuckle lock on others)
  • Mounting pan is optional extra
  • Glass Viewing Window
  • Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions

Construction

  • 1.6mm thick zinc coated steel
  • 1.6mm steel gland plate (brass also available as an option)
  • Stainless steel hinges and hinge pins for easy door opening
  • Concealed removable hinging
  • Polyurethane gasket (formed in place)
  • Pebble Grey (RAL7032) powdercoated paint finish or,

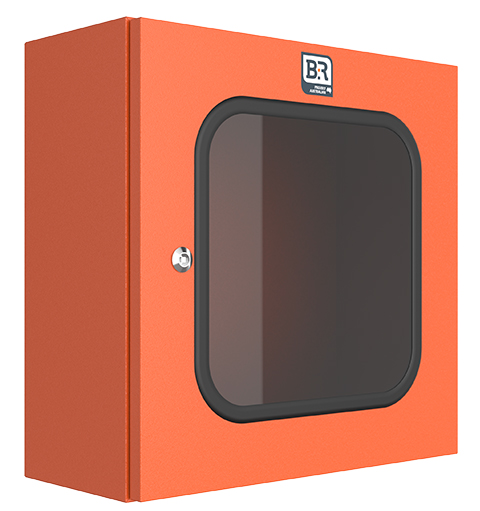

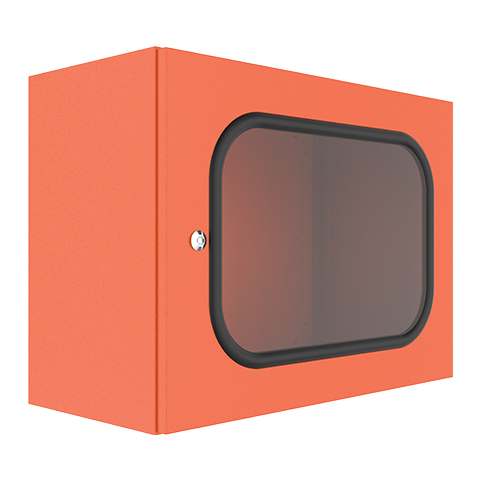

  • Ripple Orange – X15 (denoted by /RO in the part number code below)
  • 5.4mm thick Glass viewing window

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Part NumberHeight (mm)Width (mm)Depth (mm)Viewing Window Enquiry
Standard X15 OrangeHeight (mm)Width(mm)
IP13132/WGIP13132/RO/WG400400270185185Enquiry
IP13212/WGIP13212/RO/WG400600270185373Enquiry
IP13214/WGIP13214/RO/WG400600400185373Enquiry
IP21132/WGIP21132/RO/WG600400270378185Enquiry
IP21212/WGIP21212/RO/WG600600270378373Enquiry
IP21214/WGIP21214/RO/WG600600400378373Enquiry
IP21292/WGIP21292/RO/WG600800270378573Enquiry
IP21294/WGIP21294/RO/WG600800400378573Enquiry
IP21295/WGIP21295/RO/WG600800500378573Enquiry
IP25254/WGIP25254/RO/WG700700400478473Enquiry
IP29212/WGIP29212/RO/WG800600270578373Enquiry
IP29214/WGIP29214/RO/WG800600400578373Enquiry
IP29215/WGIP29215/RO/WG800600500578373Enquiry
IP29216/WGIP29216/RO/WG800600600578373Enquiry
IP29294/WGIP29294/RO/WG800800400578573Enquiry
IP37212/WGIP37212/RO/WG1000600270778373Enquiry
IP37254/WGIP37254/RO/WG1000700400778473Enquiry
IP37294/WGIP37294/RO/WG1000800400778573Enquiry
IP45212/WGIP45212/RO/WG1200600270978373Enquiry
IP45214/WGIP45214/RO/WG1200600400978373Enquiry
IP45215/WGIP45215/RO/WG1200600500978373Enquiry
IP45216/WGIP45216/RO/WG1200600600978373Enquiry
IP45294/WGIP45294/RO/WG1200800400978573Enquiry
IP45295/WGIP45295/RO/WG1200800500978573Enquiry
IP61214/WGIP61214/RO/WG16006004001378373Enquiry
IP61215/WGIP61215/RO/WG16006005001378373Enquiry
IP61216/WGIP61216/RO/WG16006006001378373Enquiry
IP61294/WGIP61294/RO/WG16008004001378573Enquiry
IP61295/WGIP61295/RO/WG16008005001378573Enquiry
IP69214/WGIP69214/RO/WG18006004001578373Enquiry
IP69215/WGIP69215/RO/WG18006005001578373Enquiry
IP69294/WGIP69294/RO/WG18008004001578573Enquiry
IP69295/WGIP69295/RO/WG18008005001578573Enquiry
IP77135/WGIP77135/RO/WG20004005001778185Enquiry
IP77136/WGIP77136/RO/WG20004006001778185Enquiry
IP77214/WGIP77214/RO/WG20006004001778373Enquiry
IP77215/WGIP77215/RO/WG20006005001778373Enquiry
IP77216/WGIP77216/RO/WG20006006001778373Enquiry
IP77218/WGIP77218/RO/WG20006008001778373Enquiry
IP77294/WGIP77294/RO/WG20008004001778573Enquiry
IP77295/WGIP77295/RO/WG20008005001778573Enquiry
IP77296/WGIP77296/RO/WG20008006001778573Enquiry
IP77298/WGIP77298/RO/WG20008008001778573Enquiry

Accessories

Accessories

  • Lock options such as L handle
  • Metal mounting pans
  • Insulated mounting pans
  • Double hinged insulating panels
  • Hinged escutcheons
  • Fixed escutcheons
  • Gland plates
  • Shelves
  • Plinths
  • Rainhood
  • Vent kit (IPVK)
  • Vent hoods
  • Lifting brackets
  • Wall mounting brackets
  • Rails (‘C’, DIN, UV, escutcheon and busbar)
  • Climate control equipment

Climate Control

For more information see our Climate Control page (opens in new tab)

Lock Options

Standard

Catalogue No.TypeMaterialCommentsLock Insert TypeKeyImage
IP020TurnbuckleChromed SteelStandard7mm Square Chromed SteelSKZTurnbuckle Lock - 7mm square, chrome steel
IP050L Handle - LockableChromed SteelStandard 1600mm or higher, Option less than 1600mmKey Code 92268SK3L Handle Lockable - Chrome Steel Key 92268

Options

Catalogue No.TypeMaterialCommentsLock Insert TypeKeyImage
IP030Wing Knob - LockableOptionKey Code 92268SK3Lockable Wing Knob - 92268 Key
IP030/CL001Wing Knob - LockableOptionKey Code CL001SK3Lockable Wing Knob - 92268 Key
IP030/L003Wing Knob - LockableOptionKey Code L003SK3Lockable Wing Knob - 92268 Key
IP111Wing Knob - Non-lockableOptionNon-lockable Wing Knob
IP040T Handle - LockableChromed SteelOptionKey Code 92268SK3T Handle Lockable - Chromed Steel 92268 Lock
IP050L Handle - LockableChromed SteelStandard 1600mm or higher, Option less than 1600mmKey Code 92268SK3L Handle Lockable - Chrome Steel Key 92268
IP052L Handle - PadlockableChromed SteelOptionPadlockL Handle - Padlockable, Chrome Steel
IP060Swing Handle - PadlockableChromed SteelOptionPadlockSwing Handle - Padlockable Chrome Steel
Inserts for Turnbuckle Locks - Optional
Catalogue No.ProductMaterialLock Insert TypeKey
LKINS3PInsertSteel3mm Double Bit PinSKZ
LKINS8SInsertSteel8mm SquareSK8
LKINS8TInsertSteel8mm TriangleSKZ

AS/NZS 61439 Compliance

AS/NZS 61439 is the new series of standards for low-voltage (LV) switchgear and control gear assemblies. For more information on whether you need to comply see our AS/NZS 61439 page.

Click the bar below the requirements and responsibilities for complaince with AS/NZS 61439 for this enclosure.

The following definitions apply to this table: -

  • Original Manufacturer* - Switchboard designer and manufacturer of the switchboard enclosure.
  • Assembly Manufacturer* - A switchboard builder.
  • Original Equipment Manufacturer - The company who manufactured the switchgear used in final assembly.

*The original manufacturer and assembly manufacturer can be the same company or different companies.

If you are a SWITCHBOARD BUILDER this means you are the ASSEMBLY MANUFACTURER and you may be the ORIGINAL MANUFACTURER too. Any switchgear you order will need to be covered by the requirements of the Original Equipment Manufacturer.

B&R has some (but not all) of the responsibilities of the ORIGINAL MANUFACTURER.

If you are an END USER of the equipment you can see who has responsibility from these definitions.

NoCharacteristic to be CheckedClauseResponsibilityComments
