onyX Floor

A 19" floor standing network rack designed to be used in home automation and home theatre applications.
onyX Floor

Product Information

Applications

Suitable for housing network equipment such as patch panels, modems and routers. Designed to be used in home automation and home theatre applications.

Features

  • Suitable for housing networking equipment including patch
    panels, modems and routers.
  • Static load rating to 1000kg – compliant to AS62208-2006
  • EIA-310-D and SSI Standards compliant

Inclusions

  • Frame and 2 x side panels
  • Front door fitted with tinted, tempered safety glass window

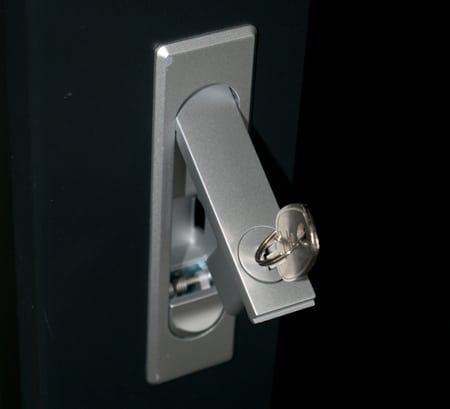

  • Keylockable swing handle (keyed to 92268) on front and rear steel door
  • 4 x full height RU marked and notched mounting rail
  • 4 x full height vertical cable management systems with snap cover and internal cable rings (800mm wide cabinets only)

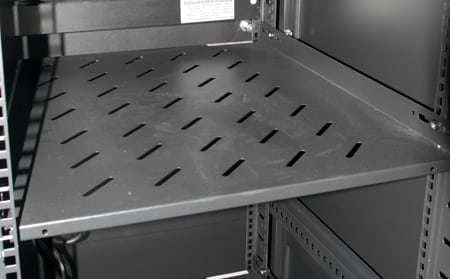

  • Fixed shelf or shelves (1 on 22RU, 2 on 32RU and 3 for all other heights)
  • 10-way Australian 3-Pin power rail

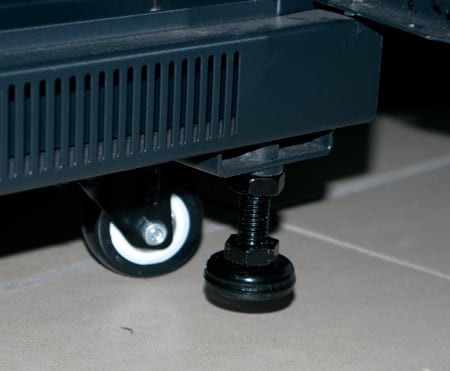

  • Adjustable feet and braked castor kit
  • Roof mounted fan unit with thermostat (2-way for <600mm, 4-way for 800/960mm deep)

Construction

  • Manufactured from SPCC rolled steel
  • Powder coated Matt Black

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Smaller Enclosures Data Rack Selector Larger Enclosures

Part NumberRUHeight (mm)Width (mm)Depth (mm)Fixed ShelfWeight (kg)Enquiry
ARFX60622U221115600600161Enquiry
ARFX60822U221115600800174Enquiry
ARFX60632U321550600600280Enquiry
ARFX60832U321550600800296Enquiry
ARFX61032U32155060010002107Enquiry
ARFX60642U421995600600397Enquiry
ARFX60842U4219956008003105Enquiry
ARFX61042U42199560010003124Enquiry
ARFX81042U42199580010003168Enquiry
ARFX60645U4521306006003107Enquiry
ARFX60845U4521306008003115Enquiry
ARFX61045U45213060010003134Enquiry
ARFX81045U45213080010003175Enquiry

Smaller Enclosures Data Rack Selector Larger Enclosures

Accessories

Accessory part numbers as shown below: –

Part NumberProductDescriptionEnquiry
ARXFL350Shelves - fixed (black)1RU high x 350 deep
ARXFL5501RU high x 550 deep
ARXFL7101RU high x 710 deep
ARWX450CSShelves - cantilever2RU high x 450 deep
ARXKBC350Shelves - keyboard1RU high x 350 deep
ARXKBC5501Ru high x 550 deep
ARXKBC7101RU high x 710 deep
ARPCMH1UHorizontal cable management rings55mm x 30mm ring, 1RU
ARPCMH2UHorizontal cable management rings110mm x 30mm ring, 2RU
ARPRH61010Power rails - horizontal (10A outlets only) SAA6 x 10A outlets, 10A plug
ARPRH610156 x 10A outlets, 15A plug
ARPRH10101010 x 10A outlets, 10A plug
ARPRH10101510 x 10A outlets, 15A plug
ARCNCage nuts50 pack
ARFXKEYFSpare keysFront door
ARFXKEYRRear door
ARXSPLSide panel lock kitSingle lock
ARFXBKBaying kitBrackets
ARDXM22U06Mesh (60% open) steel door22RU high rack, 600mm wide, single door
ARDXM32U0632RU high rack, 600mm wide, single door
ARDXM42U0642RU high rack, 600mm wide, single door
ARDXM42U0842RU high rack, 800mm wide, single door
ARDXM47U0647RU high rack, 600mm wide, single door
ARDXM47U0847RU high rack, 800mm wide, single door
ARDXDD42U0642RU high rack, 600mm wide, double door
ARDXDD42U0842RU high rack, 800mm wide, double door
ARDXDD47U0647RU high rack, 600mm wide, double door
ARDXDD47U0847RU high rack, 800mm wide, double door
