Polynova PJ

An IP55 range of adaptable thermoplastic enclosures designed to house terminations and electrical components.
Polynova PJ

Product Information

Application

Typically used for terminations, low voltage control and distribution applications.

Features

  • Opaque parts manufactured from polycarbonate (Sicoklar), a thermoplastic, self-extinguishing material

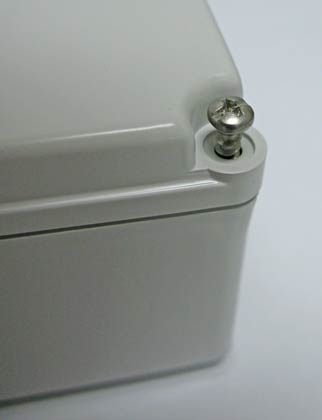

  • Stainless steel cover screws
  • UV stabilised

Conformity and Approvals

  • CE marked
  • UL94, V1 rating
  • IEC695-2-1, 960°C
  • Glow wire test

Construction

  • Opaque parts – polycarbonate (Sicoklar)
  • Transparent parts – polycarbonate
  • Surface finish – RAL7035
  • Protection rating – IP55

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Smaller Enclosures Enclosure Selector Larger Enclosures

Part NumberHeight (mm)Width (mm)Depth (mm)TypeEnquiry
PJ1107061107565OpaqueEnquiry
PJ11110611011065OpaqueEnquiry
PJ15110715011075OpaqueEnquiry
PJ15150715015075OpaqueEnquiry
PJ22150722015075OpaqueEnquiry
PJ30220730022075OpaqueEnquiry
PJ1809081809085OpaqueEnquiry
PJ151110150110100OpaqueEnquiry
PJ151510150150100OpaqueEnquiry
PJ221510220150100OpaqueEnquiry
PJ302210300220100OpaqueEnquiry
PJ111111110110112OpaqueEnquiry
PJ151115150110150OpaqueEnquiry
PJ151515150150150OpaqueEnquiry
PJ221515220150150OpaqueEnquiry
PJ302215300220150OpaqueEnquiry
PJ110706T1107565TransparentEnquiry
PJ151107T15011075TransparentEnquiry
PJ151507T15015075TransparentEnquiry
PJ221507T22015075TransparentEnquiry
PJ302207T30022075TransparentEnquiry
PJ151110T150110100TransparentEnquiry
PJ151510T150150100TransparentEnquiry
PJ221510T220150100TransparentEnquiry
PJ302210T300220100TransparentEnquiry
PJ111111T110110112TransparentEnquiry
PJ151115T150110150TransparentEnquiry
PJ151515T150150150TransparentEnquiry
PJ221515T220150150TransparentEnquiry
PJ302215T300220150TransparentEnquiry

Smaller Enclosures Enclosure Selector Larger Enclosures

Accessories

Accessories

  • Metal mounting pan
  • Wall mounting brackets
  • Aluminium DIN rail
