Sloping Roof Terminal Enclosure

The sloping roof electrical box is made from 316SS and is suitable for use in hazardous areas, Zones 1 & 2, 21 & 22.
Sloping Roof Terminal Enclosure
Australian Made
Australian Made

Product Information

Applications

Suitable for use within chemical, petrochemical, dust and grain applications.

Features

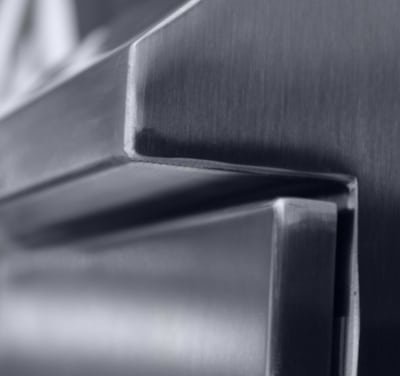

  • 40° sloping roof with 40mm overhang ensures material slides off the roof and is directed away from the top of the door.
  • Available with or without gland plate
  • Gasket material Black Neoprene.
  • Silicon option available on request IP65 and IP66 only.
  • Certified IP66 glass viewing windows available (298 x 218 or 198 x 118)

Inclusions

  • Steel mounting pan

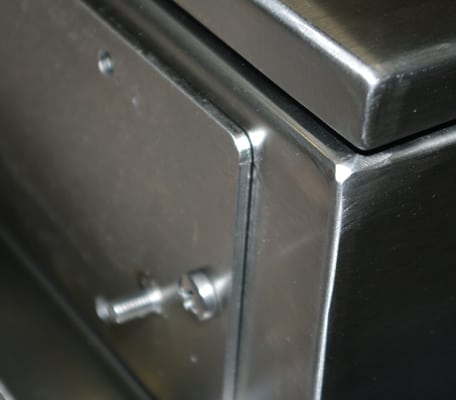

  • 7mm square stainless steel lock

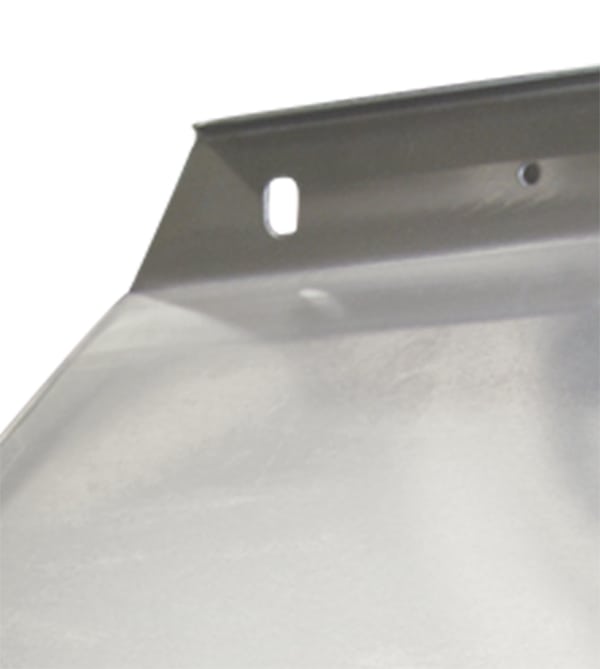

  • External mounting flange
  • Internal and external 6mm or 8mm earth stud (10mm available on request)
  • 3mm stainless steel gland plate
  • Earth strap kit
  • Brass gland plate available on request

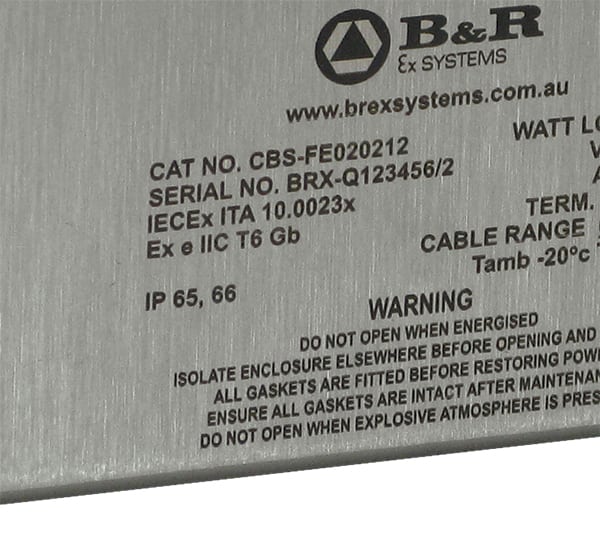

  • Customised etched identification and certification label

Technical Information

  • Protection Ratings
    Ex e IIC T6 Gb
    Ex nA IIC T6 Gb
    Ex de IIC T6 Gb
    Ex tD A21/22 T80ºC
    DIP A21/22 Ta80ºC
    Ex t IIIC T80ºC Db
  • IECEx Certificate
    IECEx ITA 10.0023X
  • Ambient Temperature
    -20ºC up to +40ºC or 55ºC

Construction

DownloadsMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

HAE-note-2

FilterPart NumberHeight (mm)Width (mm)Depth (mm)Total Height (mm)TypeDescriptionRangeEnquiry
TBK-S/G0TBK-S*030215/G0300200150551No gland plateSloping Roof Terminal Enclosure
TBK-S/G0TBK-S*030420/G0300400200551Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*040315/G0400300150651Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*040420/G0400400200651Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*040620/G0400600200710Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*040630/G0400600300794Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*060420/G0600400200910Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*060630/G0600600300994Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*080620/G08006002001110Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*080630/G08006003001194Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*100620/G010006002001310Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*120830/G012008003001594Sloping Roof Terminal Enclosure
FilterPart NumberHeight (mm)Width (mm)Depth (mm)Total Height (mm)TypeDescriptionRangeEnquiry
TBK-S/G0TBK-S*030215/G0300200150551No gland plateSloping Roof Terminal Enclosure
TBK-S/G0TBK-S*030420/G0300400200551Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*040315/G0400300150651Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*040420/G0400400200651Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*040620/G0400600200710Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*040630/G0400600300794Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*060420/G0600400200910Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*060630/G0600600300994Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*080620/G08006002001110Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*080630/G08006003001194Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*100620/G010006002001310Sloping Roof Terminal Enclosure
TBK-S/G0TBK-S*120830/G012008003001594Sloping Roof Terminal Enclosure
TBK-STBK-S*0302153002001505511 x bottom gland plateSloping Roof Terminal Enclosure
TBK-STBK-S*030420300400200551Sloping Roof Terminal Enclosure
TBK-STBK-S*040315400300150651Sloping Roof Terminal Enclosure
TBK-STBK-S*040420400400200651Sloping Roof Terminal Enclosure
TBK-STBK-S*040620400600200710Sloping Roof Terminal Enclosure
TBK-STBK-S*040630400600300794Sloping Roof Terminal Enclosure
TBK-STBK-S*060420600400200910Sloping Roof Terminal Enclosure
TBK-STBK-S*060630600600300994Sloping Roof Terminal Enclosure
TBK-STBK-S*0806208006002001110Sloping Roof Terminal Enclosure
TBK-STBK-S*0806308006003001194Sloping Roof Terminal Enclosure
TBK-STBK-S*10062010006002001310Sloping Roof Terminal Enclosure
TBK-STBK-S*12083012008003001594Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*030215/G33002001505511 bottom gland plate,2 side gland platesSloping Roof Terminal Enclosure
TBK-S/G3TBK-S*030420/G3300400200551Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*040315/G3400300150651Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*040420/G3400400200651Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*040620/G3400600200710Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*040630/G3400600300794Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*060420/G3600400200910Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*060630/G3600600300994Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*080620/G38006002001110Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*080630/G38006003001194Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*100620/G310006002001310Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*120830/G3 12008003001594Sloping Roof Terminal Enclosure
FilterPart NumberHeight (mm)Width (mm)Depth (mm)Total Height (mm)TypeDescriptionRangeEnquiry
TBK-S/G3TBK-S*030215/G33002001505511 bottom gland plate,2 side gland platesSloping Roof Terminal Enclosure
TBK-S/G3TBK-S*030420/G3300400200551Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*040315/G3400300150651Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*040420/G3400400200651Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*040620/G3400600200710Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*040630/G3400600300794Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*060420/G3600400200910Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*060630/G3600600300994Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*080620/G38006002001110Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*080630/G38006003001194Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*100620/G310006002001310Sloping Roof Terminal Enclosure
TBK-S/G3TBK-S*120830/G3 12008003001594Sloping Roof Terminal Enclosure

Total height includes the sloping roof and mounting flanges.
Total depth space required is Depth plus 40mm for roof overhang.

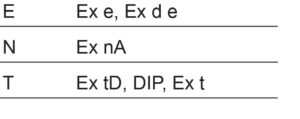

Replace the asterisk (*) in the part number above, with a letter from the table below for the corresponding protection technique that is required.

Case Studies

Ichthys LNG Case Study Banner

Ichthys LNG On-Shore Processing Plant

The Ichthys LNG On-Shore Processing plant required replacement of faulty competitor hazardous area electrical enclosures.

Hazardous Area - Banyuwangi

Banyuwangi LPG Terminal

Banyuwangi LPG terminal required lighting and enclosure solutions for hazardous areas. B&R supplied enclosures and lighting solutions for this project.

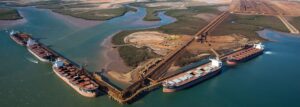

Anderson Point Expansion
