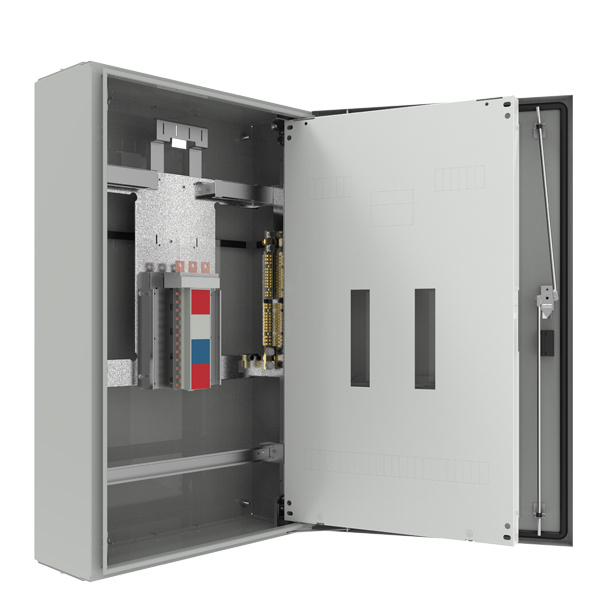

Superior Panelboard

IP66 weatherproof, highly robust distribution board system.

Product Information

Applications

Designed to be the ideal extension to the B&R Infinity 3G switchboard range and typically used in commercial, industrial and some multi-residential developments.

Features

• IP66 protection rating – more info on IP ratings
• Compatible with leading MCB’s
• Designed for NSX250 (toggle or rotary handle) or P250E MCCB’s, either auto or non-auto Main Switch
• Fully AS/NZS 61439 compliant (declaration documentation supplied)
• Field reversible door and escutcheon

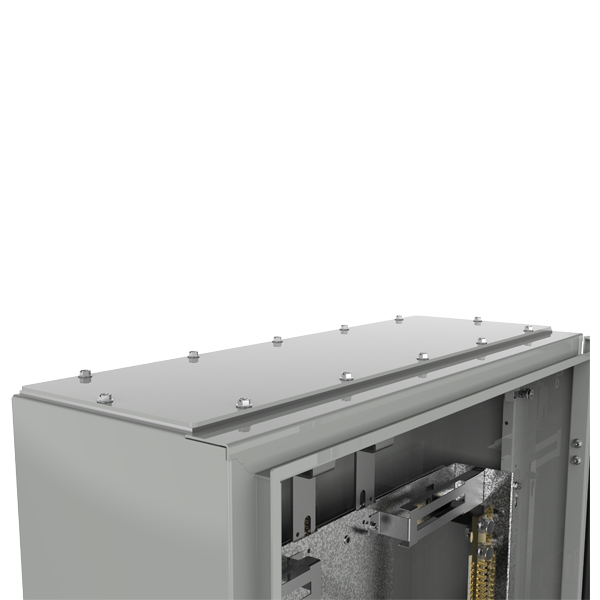

• 3mm aluminium gland plates top and bottom
• Three-point swing-handle half-euro cylinder lock (keyed 92268)
• 5 chassis sizes available – 24P, 36P, 48P, 60P and 72P (250A max)

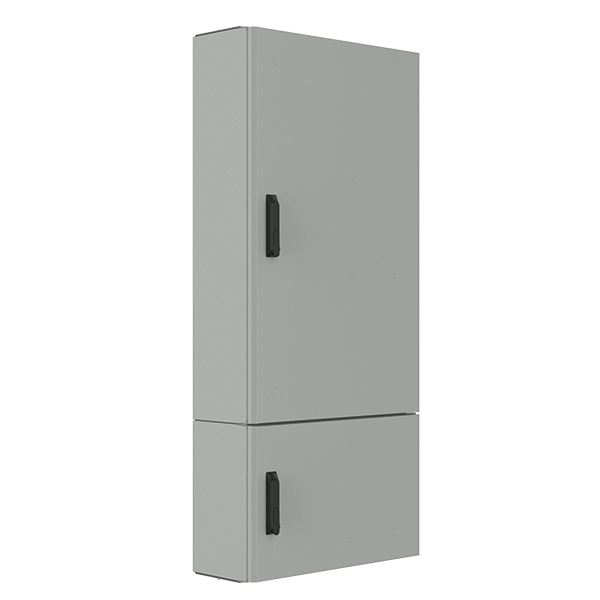

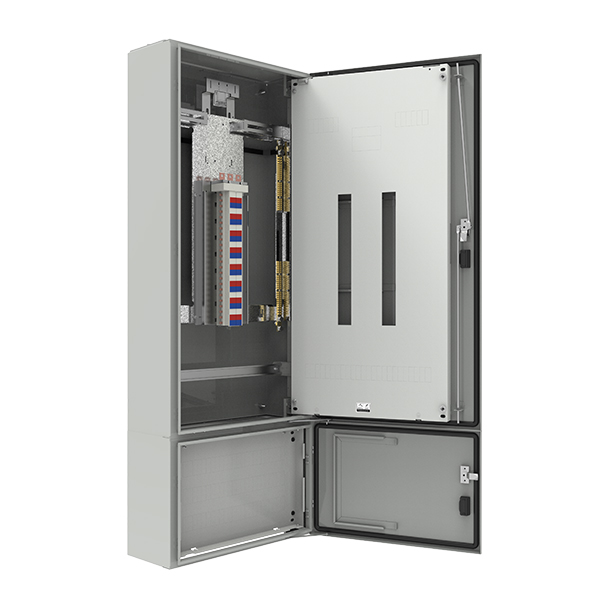

• Multi-function extension box up to 48P or mounting pan for adding power monitors and/or controls

Inclusions

• Aluminium gland plates top and bottom
• Hinged escutcheon
• Schedule holder and distribution schedule
• Swing handle three point locking
• 6 Pole DIN section either side of Main Switch (12 poles total)
• 24 Pole DIN section below chassis
• Escutcheon earth strap kit

Construction

• Choice of materials
  • 1.6mm zinc coated steel powdercoated RAL7035 light grey and X15 orange*
  • 1.5mm 316 stainless steel* with N4 finish
• Aluminium gland plates top and bottom
• Stainless steel pintle style hinges for easy door removal
• Polyurethane gasket (formed in place)



*   X15 orange and stainless steel on request (MTO)



Please note a gland plate kit is required for extension boxes used as a standalone enclosure. Speak to your local B&R Sales Representative to order.
