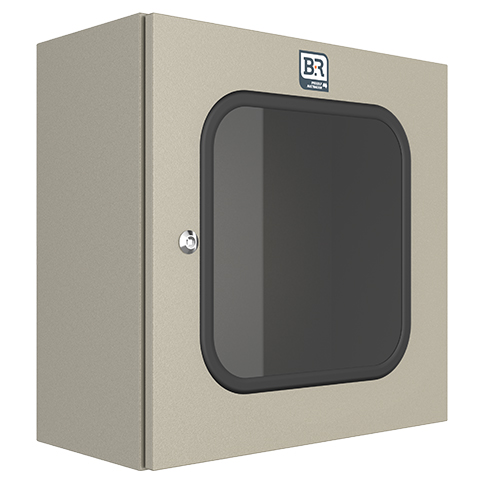

Universal NI – Viewing Window (ZS)

An IP66, enclosure designed to maximise life in service and built for industrial or demanding environments
AS/NZS 61439
Universal NI – Viewing Window (ZS)
Australian Made
Australian Made

Product Information

Applications

Designed to house equipment such as electronic controls and instrumentation, junction terminations, PLCs, motor control systems, hydraulic, pneumatic and machine tool controls.

Features

  • IP66 protection rating – more info on IP ratings
  • Specially designed gutter system
  • 120º door opening provides easy access
  • Door rails come as standard fitted to the inside of the door
  • Unique wall-mount feature ensures installation is quick and easy with no need to drill holes in the enclosures body
  • Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions
  • 2mm steel mounting pan powdercoated white
  • 5.4mm thick Glass Viewing Window

Construction

DownloadsAccessoriesMore ProductsEnquiryOnline StockistsLocal Stockists

Order Guide

Smaller Enclosures Enclosure Selector Larger Enclosures

Part NumberHeight (mm)Width (mm)Depth (mm)Usable Depth (mm)Window Height (mm)Window Width (mm)Enquiry
Standard X15 Orange
NI04042/WGNI04042/RO/WG400400200175185185Enquiry
NI05042/WGNI05042/RO/WG500400200175278185Enquiry
NI06042/WGNI06042/RO/WG600400200175378185Enquiry
NI05052/WGNI05052/RO/WG500500200175278273Enquiry
NI04062/WGNI04062/RO/WG400600200175185373Enquiry
NI06062/WGNI06062/RO/WG600600200175378373Enquiry
NI08062/WGNI08062/RO/WG800600200175578373Enquiry
NI10062/WGNI10062/RO/WG1000600200175778373Enquiry
NI04043/WGNI04043/RO/WG400400300275185185Enquiry
NI06043/WGNI06043/RO/WG600400300275378185Enquiry
NI04063/WGNI04063/RO/WG400600300275185373Enquiry
NI06063/WGNI06063/RO/WG600600300275378373Enquiry
NI08063/WGNI08063/RO/WG800600300275578373Enquiry
NI10063/WGNI10063/RO/WG1000600300275778373Enquiry
NI08083/WGNI08083/RO/WG800800300275578573Enquiry
NI10083/WGNI10083/RO/WG1000800300275778573Enquiry
NI12083/WGNI12083/RO/WG1200800300275978573Enquiry

Smaller Enclosures Enclosure Selector Larger Enclosures

Accessories

Accessories

Climate Control

For more information see our Climate Control page (opens in new tab)

AS/NZS 61439 Compliance

AS/NZS 61439 is the new series of standards for low-voltage (LV) switchgear and control gear assemblies. For more information on whether you need to comply see our AS/NZS 61439 page.

Click the bar below the requirements and responsibilities for complaince with AS/NZS 61439 for this enclosure.

The following definitions apply to this table: -

  • Original Manufacturer* - Switchboard designer and manufacturer of the switchboard enclosure.
  • Assembly Manufacturer* - A switchboard builder.
  • Original Equipment Manufacturer - The company who manufactured the switchgear used in final assembly.

*The original manufacturer and assembly manufacturer can be the same company or different companies.

If you are a SWITCHBOARD BUILDER this means you are the ASSEMBLY MANUFACTURER and you may be the ORIGINAL MANUFACTURER too. Any switchgear you order will need to be covered by the requirements of the Original Equipment Manufacturer.

B&R has some (but not all) of the responsibilities of the ORIGINAL MANUFACTURER.

If you are an END USER of the equipment you can see who has responsibility from these definitions.

NoCharacteristic to be CheckedClauseResponsibilityComments
